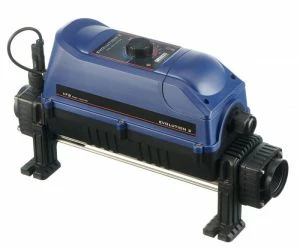

HEV153 | 15kW 3 Phase With Titanium Tube And Elements

A fully titanium heater by Elecro, the Evolution 2, is the latest and upgraded version of the original Evolution. Boasting 100% efficiency, safety, and above all, reliability, this compact and robust unit will effortlessly heat your pool or spa to your desired temperature.

Heating Elements: Titanium

Flow Tubes: Titanium

Flow Switch: Gold tipped reed switch with titanium fulcrum pin

Flow Requirements:

Minimum Flow | 2kW to 6kW = 1m3/hr | 9kw to 24kW = 4m³/hr

Maximum Flow 17m³/hr

Safety Thermal Cut Out: 60°C (manual reset)

Contactors: Siemens 3RT2023 or 3RT2027

Control Thermostat: Analogue 0 to 45°C (1.2°C differential)

Water Connections: 1.5” BSP supplied with 1.5” to 50mm ABS unions and 1.5”/1.25” hosetails
